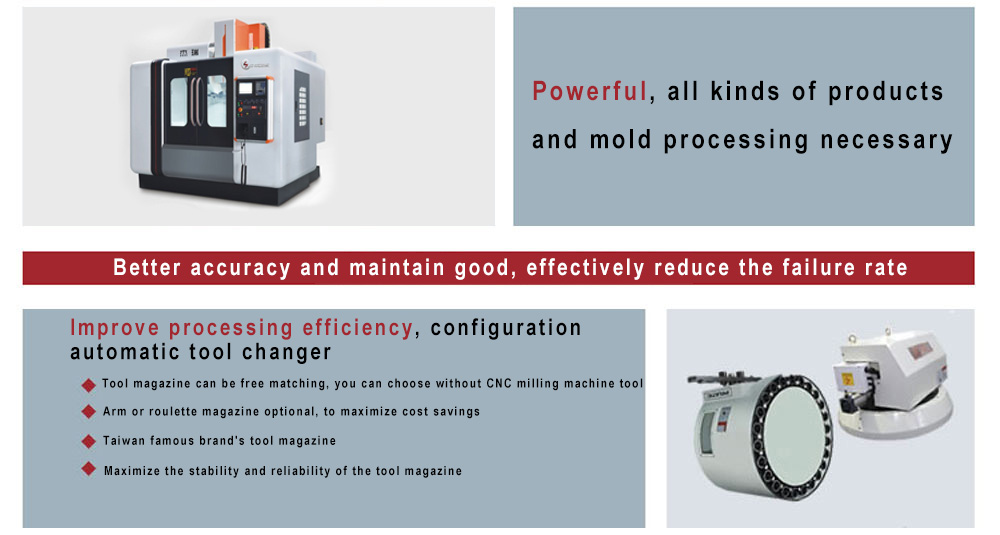

High-speed machining center is a high-performance rigid vertical machining center newly developed by our company. The machine has the advantages of strong overall structure, more accurate precision, lower failure rate and more dependability.

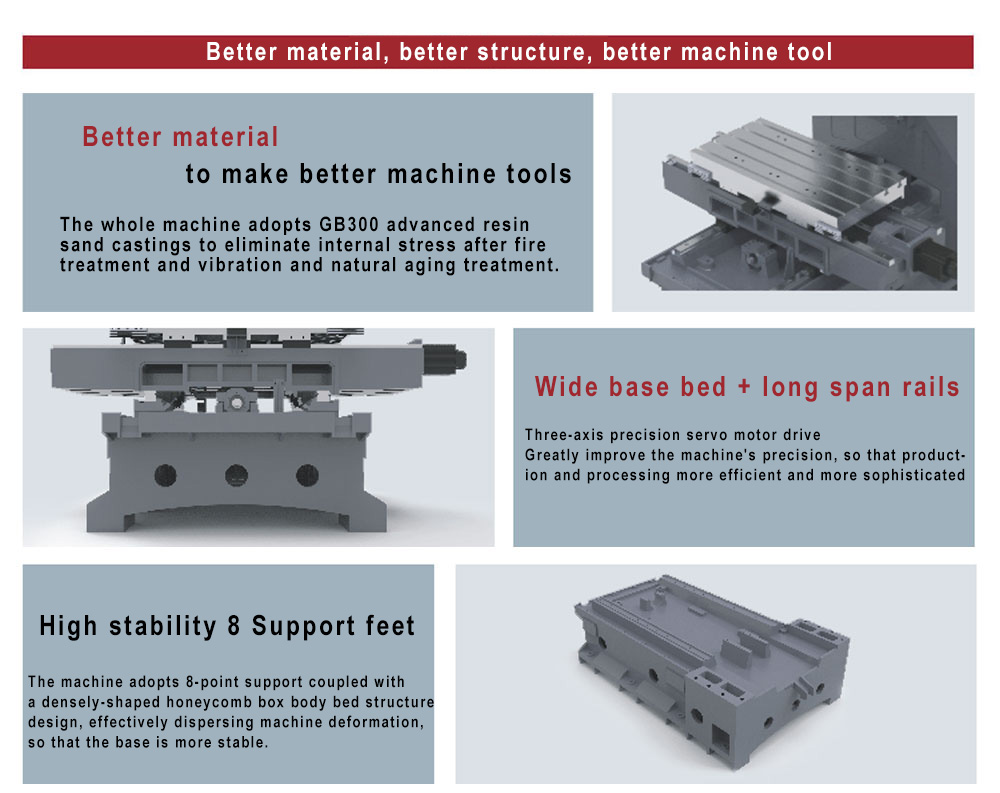

The machine has a strong overall structure, the machine structure through finite element analysis optimization, more rigid, more stable structure.

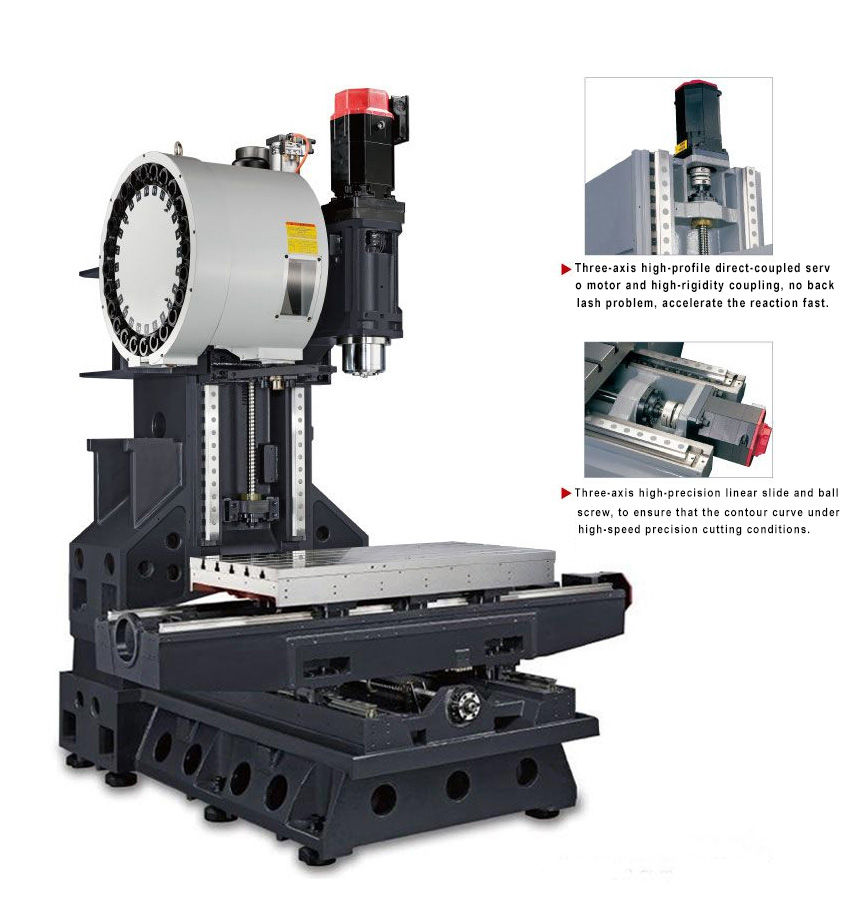

Rib head design: the internal ribs bold, strengthening the structural rigidity significantly improve the processing stability.

High rigidity spindle can be equipped with high torque device production efficiency increased by 30% or more.。

Adaptation:：

① rigid machine to both low failure rate, good reliability into production occasions

② specially adapted to the spindle box high speed reciprocating motion processing occasions

③ Short throat depth high rigidity compact structure with high torque device production efficiency

More than 30%, suitable for heavy metal heavy load processing.

Machine tool parameters

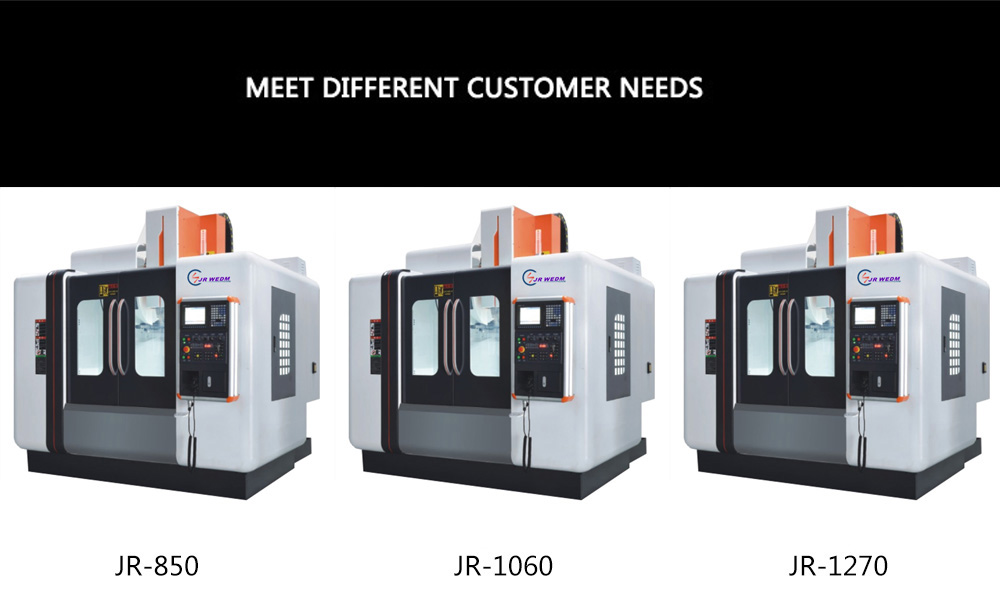

Name	unit	JR-850	JR-1060	JR-1270	JR-1370	JR-1580	JR-1690	JR-1890
X	mm	800	1000	1200	1300	1500	1600	1800
Y	mm	500	600	700	700	800	900	900
Z	mm	500	600	600	650	700	680	680
Workbench size	mm	1050*500	1300*600	1360*700	1400*710	1700*800	1800*900	2000*900
Maximum load-bearing of worktable	Kg	600	800	1300	1300	1500	1600	1600
Nose end to mesa	mm	105-605	180-780	150-750	150-800	170-870	160-840	160-840
The distance between the center of the spindle and the column	mm	550	600	785	785	810	950	950
Spindle speed	rpm/min	8000/12000			6000/10000
Spindle taper		BT40	BT40	BT50	BT50	BT50	BT50	BT50
X/Y/Z	KW	3.0/3.0/3.0	3.0/3.0/3.0	3.0/3.0/3.0	3.0/3.0/3.0	4.5/4.5/4.5	4.5/7/4.5	4.5/7/4.5
Spindle power	KW	7.5	11	15	15	18.5	18.5	22
X/Y/ZFast moving speed	m/min	16/16/14	16/16/14	16/16/14	16/16/14	15/15/12	15/15/12	15/15/12
feed rate	m/min	1-10000	1-10000	1-10000	1-10000	1-10000	1-10000	1-10000
positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeatable positioning accuracy	mm	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
Packing weight of machine tools	Kg	5300	8000	9500	11500	13500	15000	16000
Shape size of machine tool packing	mm	270024002600	335025002800	370030003200	400030003400	440035003400	460036003500	490040003500

Processing center configuration table

Host	□ Standard host one	Standard
principal axis	□ Belt type BT40 8000rpm spindle	Standard
	□ Direct connection BT40 10000/12000/15000rpm	option
	□ Main shaft oil cooling	option
	□ Main shaft ring spray cooling	option
	□ Main shaft center water	option
	□ Main shaft cutter blowing	option
Handle form	□ BT40	Standard
Stud form	□ MAS BT-40/P40T-1	Standard
Cooling system	□ Standard cooling system	Standard
handwheel	□ Connecting handwheel	Standard
Electric box cooling	□ heat exchanger	Standard
Electric box cooling	□ Automatic air conditioning	option
Working lamp	□ LED working light	Standard
Tricolor lamp	□ LEDTricolor lamp	Standard
Horizontal adjusting screw and cushion block	□ Horizontal adjusting screw and cushion block	Standard
Hold-all	□ Hold-all	Standard
lubrication system	□ Automatic lubrication system	Standard
protect	□ Full cover protective sheet metal	Standard
One year warranty parts	□ One year warranty parts	Standard
chip removal system	□ Chain / spiral chip removing device	option
chip removal system	□ Automatic dust absorption	option
flushing system	□ flushing system
Fast moving speed	□ 36/36/36m/min
Servo rotary table	□ Fourth axis
Servo rotary table	□ Fifth axis
Full closed loop system	□ Grating ruler
The knife	□ BT40 24 bit disc knife library
The knife	□ BT40 16 bamboo hat type tool magazine

The brand and producing area of the main parts of the processing center

No	Project	Brand	Place of production
1	Controller system	MITSUBISHI / FANUC	Japan
2	Spindle motor	MITSUBISHI / FANUC	Japan
3	Spindle	Simpson	Taiwan
4	x/y/z Three axis motor	MITSUBISHI / FANUC	Japan
5	Spindle bearing	NSK	Japan
6	Three axle bearing	NSK	Japan
7	Three axle ball screw	PMI/HWIN	Taiwan

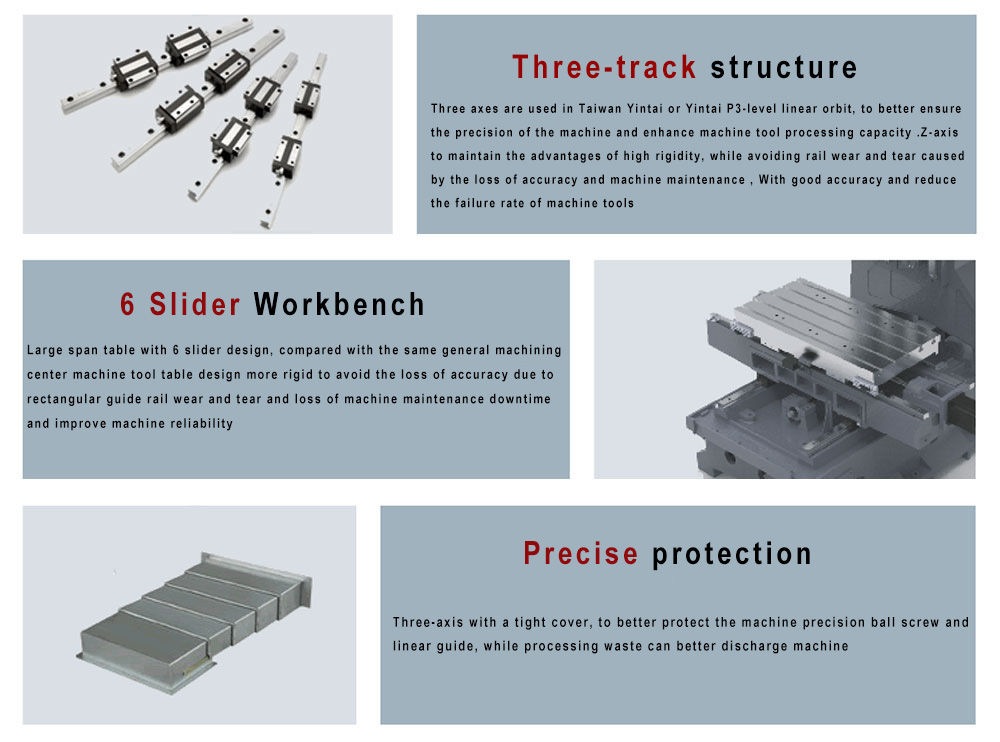

8	X/y axis linear slide rail	PMI/HWIN	Taiwan
9	coupling	R+W	Germany
10	Three axis telescopic shield	Yinxing	Taiwan
11	Knife library	The first round of Beiju / Okada / Saint /	Taiwan
12	The main mechanism.		Taiwan
13	Cutting liquid motor		Taiwan
14	operation panel	vino	domestic
15	heat exchanger	Ounheuan	domestic
16	Solenoid valve (air pressure)	AIRTAC	Taiwan
17	Air pressure parts	AIRTAC	Taiwan
18	Main electrical components	Schneider	Germany
